🏢 Free Community Emergency Service for Residents
A Solar Community Emergency Repeater Node (CIPRO Network) is active and operating on your building's rooftop. Powered 100% autonomously by solar energy, this device is designed to ensure no neighbor is left disconnected during blackouts, severe storms, or cellular network failures.
1. What was installed on the building and why is it a benefit for everyone?
A micro-repeater node is a compact, weatherproof outdoor radio unit that acts as an “invisible bridge” using long-range, ultra-low-power radio waves (LoRa technology on 915 MHz).

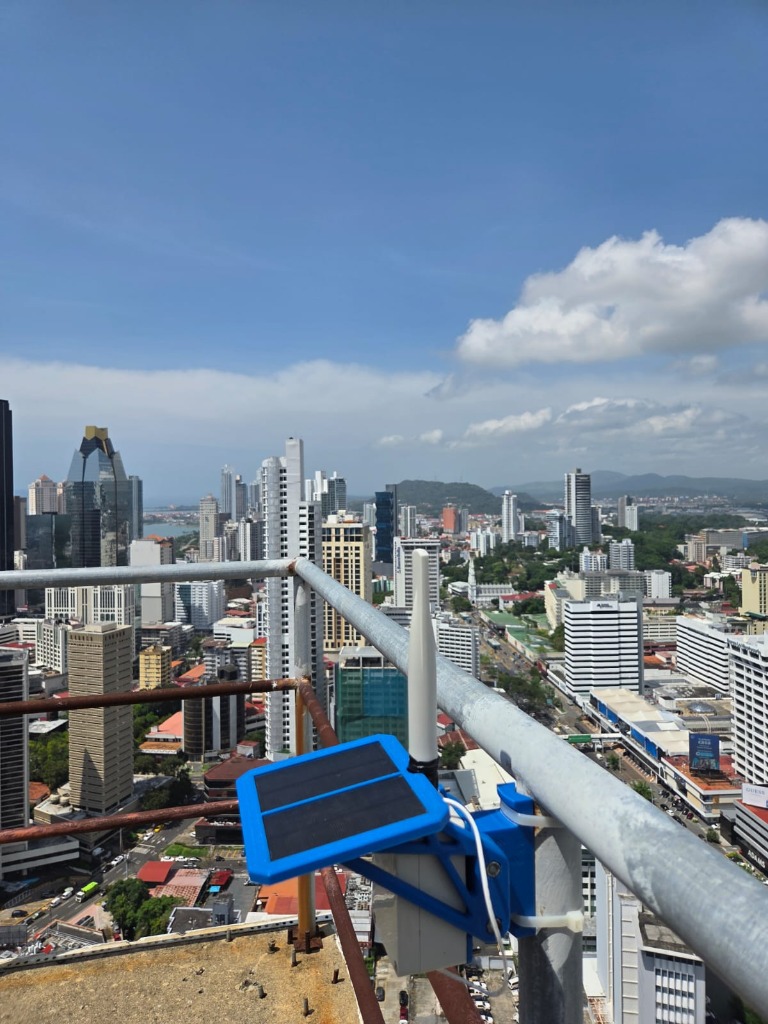

Rooftop repeater node: Positioned at the highest point of the tower, it leverages elevation to link apartments and common areas with the wider community network.
2. The Big Emergency Problem: Why do WhatsApp and Cell Towers Fail?
During major grid blackouts or disasters, three unavoidable failure modes occur:
- Immediate Wi-Fi & Fiber Drop: Home routers turn off instantly when electricity drops.
- Cell Tower Battery Depletion: Mobile cell towers rely on backup batteries that run out after 2 to 4 hours.
- Mass Congestion: Thousands trying to call simultaneously overload the commercial telecommunications infrastructure.
The Solution: Meshtastic operates on an autonomous, peer-to-peer mesh. Messages hop between pocket radios and rooftop nodes across the city without relying on cell towers or internet backbones.
3. How to Connect as a Resident (3 Simple Steps)
- Step 1: Download the Free Meshtastic App: Available for Android and iOS (iPhone).
- Step 2: Get a Pocket LoRa Radio: Compact pocket devices (Heltec V3, T-Echo, Station G2) that recharge via USB-C, available via local electronics or assembled through the CIPRO Community Workshop.
- Step 3: Pair via Bluetooth: Connect your phone to your pocket radio in 10 seconds and start messaging.
4. The 3 Communication Modes for Neighbors
┌────────────────────────────────────────────────────────────────────────┐
│ COMMUNICATION MODES IN MESHTASTIC │
├────────────────────┬────────────────────┬──────────────────────────────┤
│ 📢 PUBLIC MODE │ 🔒 PRIVATE 1:1 MODE│ 👥 PRIVATE GROUP CHANNELS │
│ (Primary Channel) │ (Direct Message) │ (Neighbors / Families) │
├────────────────────┼────────────────────┼──────────────────────────────┤
│ • Open broadcast │ • Person to person │ • Encrypted QR code groups │
│ • Emergency relief │ • Military crypto │ • Neighbor support teams │
│ • City status │ • Zero eavesdrop │ • Floor-by-floor coordination│
└────────────────────┴────────────────────┴──────────────────────────────┘
- Mode 1 — Public Emergency Channel: Open city broadcast for emergency help, first responder coordination, and utilities status.
- Mode 2 — Private Direct Messages (1:1): End-to-end AES-256 encrypted chats between specific individuals.
- Mode 3 — Private Group Channels: Encrypted sub-channels for Neighbor Support Teams, Floor Groups, or Families, shared via simple QR codes.
5. Real-Life Family Stories: Everyday Convenience and Peace of Mind
Beyond emergency resilience, families and neighbors use this technology daily in warm, human ways:
Kids & Parents: Safe Contact Without Internet Risks
Parents often prefer not to give an open data plan or social media access to young kids when they go down to the pool, playground, or a neighbor's apartment.
The Solution: Giving the child a spare phone (no SIM, no internet) paired to a Meshtastic pocket radio. Parents can message "Time for dinner, come upstairs" with complete peace of mind, knowing the child is not exposed to web hazards.
Direct Link with Home, Babysitters and Caregivers
When young children or elderly grandparents stay at home with a caregiver or nanny, phone data might run out or home Wi-Fi might drop unexpectedly.
Permanent Free Channel: A small radio kept at home provides an uninterrupted, direct, free communication line to check if lunch was served or medication was taken on time.
6. Long-Distance Connection via Internet (MQTT): What if You are Away?
What happens if you travel abroad for work, go on vacation to a remote beach, or visit an area with no direct LoRa radio coverage, and need to check on your building or family during an emergency in Panama?
Meshtastic includes an optional internet gateway feature called MQTT.
🌐 How the MQTT Gateway Works
MQTT bridges your smartphone app over the internet to the central CIPRO Panamá community server. When you post a message from abroad, your phone sends it over the internet, and connected nodes in Panama instantly rebroadcast it over the local radio airwaves into your building and city.
7. Summary & Useful Resources
- 📲 Software Downloads & Meshtastic Apps: Official apps for Android, iOS, Windows, Mac, and Linux.
- 🛠️ CIPRO Community Workshop & Node Orders: Interactive catalog for pocket radios, pre-built kits, and tested accessories in Panama.
- 🌐 MQTT Configuration Guide: Step-by-step instructions for remote internet gateway setup.
- 💬 Get in Touch with CIPRO Panamá: Connect with local operators and radio volunteers.
